KIT directie Heavy Duty Off-Roand Only U-Turn pt. 84-06 Jeep Cherokee XJ, Grand Cherokee ZJ, Wrangler TJ & Unlimited

Cod : Q56116.3000

Limited Lifetime Warranty

0 out of 5 based on 0 ratings. / Opinia ta

sunati
5618,88 lei / set
... se încarcă stocurile

Comanda prin telefon la 0720-306.000 L-V 10:00-18:00

Cum livram?


Se pot alege urmatoarele modalitati de livrare:

 Fan Courier:

- Daca se alege ca modalitate de plata Plata la livrare (Ramburs)– costul transportului este de 30 RON primul kg si se adauga 1 RON/kg pentru fiecare kg suplimentar. Serviciul de RAMBURS este pe CONT COLECTOR, de aceea va rugam sa pastrati chitanta prinita de la FAN COURIER.
- Daca se alege ca modalitate de plata Transfer bancar costul transportului este de 25 RON primul kg si se adauga 1RON/kg pentru fiecare kg suplimentar.




KIT directie Heavy Duty Off-Roand Only U-Turn pt. 84-06 Jeep Cherokee XJ, Grand Cherokee ZJ, Wrangler TJ & Unlimited

Finally a crossover steering design that eliminates steering toe change from suspension height change, commonly called bump steer. The drag link is a hefty 1.25" diameter and made from Solid 4130 chromoly that is welded, formed and heat treated for ultimate durability. The tie rod is an even larger 1.375" diameter and made from Solid 4130 chromoly that is welded and heat treated. Steering Stabilizer sold separately.

Product Details:
- Tie rod and drag link painted for easy touchup.
- Custom 1 1/4 hex thread insert bungs that are radially MIG welded, for easy and proper jam nut tightening at each jam nut.
- A drag link connection at the passenger hub that allows full turning radius lock to lock to match the steering box.
- A drag link design allows clearance for track bar bracket/sway bar bracket. No bracket trimming is required after you lift your Jeep.
- Custom hubs that bolt to your original steering knuckles, machined and TIG welded for strength, tapered for tie rod end attachment.
- Improved steering feel, removing the "Dead Spot" commonly associated with a lifted TJ steering.
- U-Turn™ is fully compatible with a stock trackbar, Rubicon Express Extreme Duty track bar, Full Traction Drop Bracket and most others that relocate front track bar at the frame end lower than the factory location.
- U-Turn™ requires a stock pitman arm.
- Steering stabilizer bracket included, it DOES require an aftermarket or OEM replacement steering stabilizer.
- Designed for TJs with up to 6" of lift. Stock height TJs may have a slight interference during maximum compression, not an issue during articulation.
- 100% bolt on application for TJ Dana 30/44 front axles with or without ABS sensors installed.

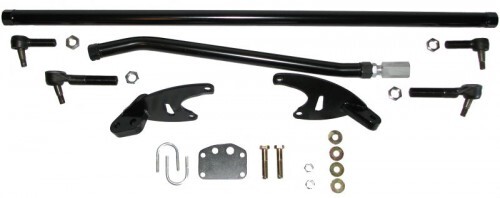

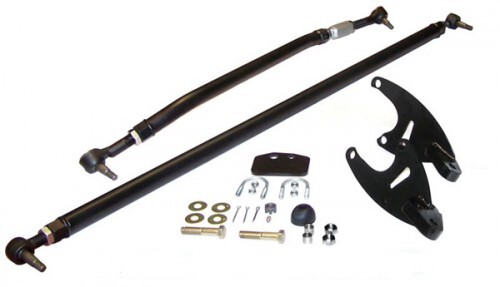

Parts Included:
Tie Rod
Drag Link
Steering Knuckle Brackets
Steering Stabilizer Bracket
Installation Hardware

Installation Notes:

1. Must Have Stock Pitman Arm
2. On Cherokee & Grand Cherokee must have stock Track Bar Mounting Locations.

Fits These Vehicles:
84-01 Jeep Cherokee (XJ)
93-98 Jeep Grand Cherokee (ZJ)
97-06 Jeep Wrangler (TJ)
04-06 Jeep Wrangler Unlimited (TJ)
Model Jeep / 4x4:
97-06 Wrangler TJ, 04-06 Wrangler Unlimited LJ, 84-01 Cherokee XJ, 93-98 Grand Cherokee ZJ
