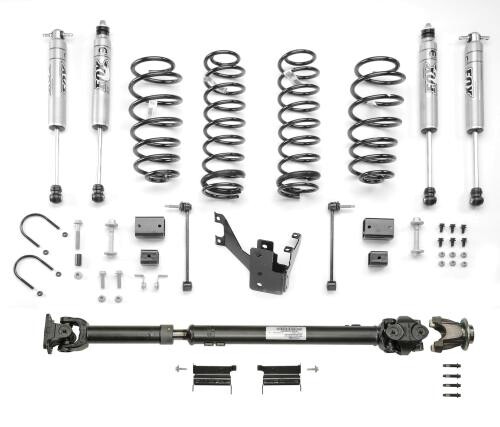

Mopar® 77070088 Stage I 2" Lift Kit with Fox Shocks for 12-17 Jeep® Wrangler Unlimited JK 4 Door

including the Electronic Stability Program

quality and handling, both on-road and on the trails

bar; the rear is handled via a track bar relocation bracket with integrated brace

Wheel and Tire Recommendations:
Stock tires and / or wheels can be used. Ideal
aftermarket wheel specifications are 17” Diameter x 9” Wide with 4.5” Back Spacing.
Tire diameter: 33” to 35”
Tire Width: No greater than 12.5” when used on stock wheels, or aftermarket wheels with stock Back Spacing (6.0”). Check wheel size recommendations of tire manufacturer. 13.5” width tires can be run with a 4.5” Back Space wheel, but some fender scrub may be experienced during full articulation.
Wheel Diameter: No less than 17”
Wheel Width: 7.5” (stock Rubicon) to 9”.
Wheel Back Spacing: 6” (stock) to 4.5” (preferred). As Back Spacing dimension decreases, track width and stability increases.

• Lift Kits work with all Wrangler vehicle systems
  • Ideally rated coil springs provide unmatched ride
  • Yields all of the suspension articulation the JK platform has to offer
  • Adjustable alignment cams (at lower link arms-to-axle attachment points) correct caster angle
  • Front body / frame alignment corrected by an adjustable track
  • Correct length sway bar links with greasable, factory type ends
  • Brake hose and parking brake cable relocation brackets
  • Replacement high-clearance, high capacity steering dampener kit
