Gigglepin PRO Series Twin Motor Top Housing For Warn 8274 And GP80 Series Winches

Cod : GPTopHousing

‹ › ×

0 out of 5 based on 0 ratings. / Opinia ta

livrare 5-7 zile

5712,00 lei / buc

Adauga în coş

Comanda rapida

Comanda prin telefon la 0720-306.000 L-V 10:00-18:00

Echivalam preţul
| Intreaba un consultant pe email
| Anunţă un prieten

Livrare

Cum livram?

Se pot alege urmatoarele modalitati de livrare:

Fan Courier:

- Daca se alege ca modalitate de plata Plata la livrare (Ramburs)– costul transportului este de 30 RON primul kg si se adauga 1 RON/kg pentru fiecare kg suplimentar. Serviciul de RAMBURS este pe CONT COLECTOR, de aceea va rugam sa pastrati chitanta prinita de la FAN COURIER.
- Daca se alege ca modalitate de plata Transfer bancar costul transportului este de 25 RON primul kg si se adauga 1RON/kg pentru fiecare kg suplimentar.

Multimedia

Documentatie

Descriere produs

Gigglepin \'Pro\' Series Twin Motor Top Housing For Warn 8274 And GP80 Series Winches

Suitable for M8274 & GP82/83 winches

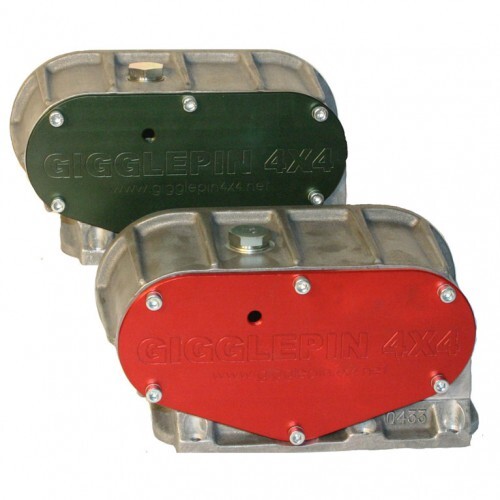

The Gigglepin 4x4 designed top housing is manufactured from sand-cast and heat-treated LM25 aluminium. Does not flex, ensuring accurate, consistent gear meshing. It also has additional fixings to the lower casing.

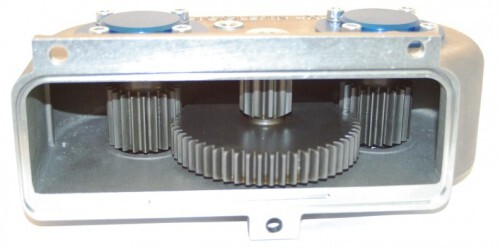

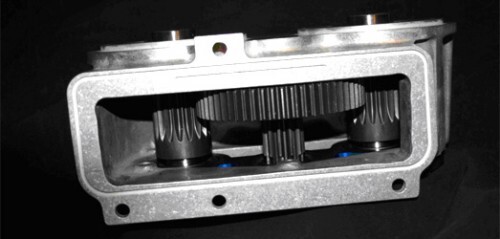

Designed to present a flat front to the winch to protect the motors from impact. The cover plate is machined from billet alloy, featuring tapings for venting and filling. New wider one-piece intermediate gear-set machined from EN36 and case hardened; reduced gear loading, reduced backlash (fewer gears, more precisely machined), with stronger, better wear characteristics. The intermediate shaft is supported by large ball bearings at each end, rather than the original very small internal needle roller bearings. Less drag means more power. Big bearings mean big reliability. New input gears are again machined from EN36 and casehardened, to provide drive from the motors to the intermediate gear set. These gears too are supported at both ends by large roller bearings, rather than relying on the motor to give the required support, again to ensure proper meshing, less drag and consistent reliability. All gears have new, wider tooth profiles to reduce loading and stop tooth breakage.

The gear material specification has been raised from EN24 to EN36 for increased strength and reliability. The gears are machined accurately for superior meshing, reduced backlash (helping withstand shock-loading) and reduced drag/mechanical losses.

To compliment the twin motor housings six different ratios are available:
Standard (Same as standard 8274 winch)
+13%, +25%, +40%, +50%, +60% (Faster than standard M8274)

All new housings are supplied with a choice of these ratios, or ratio kits are available separately and are an easy fit into any Gigglepin Twin motor top housing allowing the user the flexibility to pick and choose there gearing dependant on the terrain or event.

In short the Advantages of the Twn Motor Top Housing are:
Twice the power, twice the speed.
Decreased motor effort, saving motors and batteries.
Superior design and material grades eliminating breakage.
Sustained line rate on hard pulls.
Higher maximum load capacity.
Transportul estimativ este cca 100 GBP si NU este inclus in Pret.

Documentatie / Manuale utilizare

Specificații tehnice

Model Jeep / 4x4:

07- 18 Wrangler 2-Usi JK, 07-18 Wrangler Unlimited 4-Usi JKU, 97-06 Wrangler TJ, 04-06 Wrangler Unlimited LJ, 87-95 Wrangler YJ, 81-86 CJ-8 Scrambler, 76-86 CJ-7, 55-83 CJ-5 & CJ-6, 40-65 Willys MB, M-38, Ford GPW, CJ-2 & CJ-3, 84-01 Cherokee XJ, 93-98 Grand Cherokee ZJ, 99-04 Grand Cherokee WJ, 05-10 Grand Cherokee WK, 11-15 Grand Cherokee WK2, 06-10 Commander XK/XH, 02-07 Liberty KJ, 08-12 Liberty KK, 07-16 Compass / Patriot MK, ... Nissan, ... Suzuki, ... alta Marca
