Diferential Blocabil ARB pt. DANA30

Please click on your specific Dana 30 differential application below to see the proper ARB locker for your setup.

ARB #RD100 - Dana 30 Air Locker - 27 spline axle - 3.73 & up ratio
ARB #RD101 - Dana 30 Air Locker - 27 spline axle - 3.54 & down ratio
ARB #RD104 - Dana Super 30 Air Locker - 30 spline axle - 3.73 & up ratio

Locking differentials have been available for years, but were always a compromise; performing well either off the road or on the road - but not on both. The ARB Air Locker provides normal differential action on the street - maintaining safe, predictable handling. An ARB Air Locker differential will drive out of the most diffiucult situations. Easy-to-follow installation instructions are included in the kit. ARB air lockers are covered by a 12 Month or 12,000 mile limited warranty.

ARB Air Locking Diffs For Competition/Off-Road/Rock Climbing:

Installation of the ARB RD100 air locker should be performed by a qualified differential technician, although no special tools or skills are required apart from those necessary for fitting a standard differential. When installed with an ARB air compressor (high putput or mini), the locker system is supplied as a complete kit which contains all of the parts necessary for proper installation, including industrial grade control switches, air lines and fittings. ARB offers two compressor models suitable for Air Locker operation (high output air compressor or mini air compressor). A dedicated air activation system is available which is extremely durable and compact. Alternatively a larger compressor can be specified, which is also perfect for inflating tires, air mattresses and a host of other applications where compressed air is required.

The world’s most highly regarded traction aid, an ARB Air Locker is a driver controlled locking differential originally designed to give serious 4 wheelers the traction needed to combat extreme off road terrain. When extra traction is required, the driver activates the Air Locker via a convenient dash mounted switch. Pneumatic pressure supplied by an on board air compressor engages ARB’s patented locking mechanism within the Air Locker, thus preventing the wheels from turning independently. The Air Locker is deactivated by flicking a switch, returning the differential to normal.

ARB Air Locker’s patented design has proved ultra dependable, even in the most arduous conditions. It’s strength lies in its simplicity – minimal moving parts ensures maximum reliability. All structural components are manufactured from aerospace grades of high alloy steel, and where possible, we increase the number of differential pinion gears to distribute torque loads evenly. Many recent Air Locker designs also utilise timed gear sets to further improve strength, a design feature that has led to a second US patent on the product.

The Air Locker design process involves exhaustive testing. Computerised Finite Element Analysis (FEA) allows us to subject each Air Locker design to "virtual" off road simulations far more extreme than those encountered in real life. Destructive laboratory testing is carried out to ensure the strength of the Air Locker exceeds that of the axles or other driveline components. Environmental test cells subject prototype models to high (120ºC) and low (-24ºC) temperature running conditions, as well as harsh wheelspin engagement for cycle durations of more than 20,000 actuations. Finally, field-testing is carried out in the harshest environments imaginable.

Once the design phase is complete, Air Lockers are manufactured at our state-of-the-art facility in Melbourne, Australia. Available for both front and rear diffs, we have Air Lockers in over 100 configurations to suit a wide range of vehicles around the world.

Provides 100% traction on demand without affecting on road drivability or driveline wear.
Vastly improved traction means less reliance on momentum, thus reducing the likelihood of vehicle damage and environmental impact.
Easy, convenient operation allows the user to concentrate on the terrain without leaving the comfort and safety of the driver’s seat.
Ultra durable and extremely strong - only the highest quality materials used in construction.
Incredibly simple yet effective design that employs minimal moving parts, thereby ensuring maximum reliability.
Thoroughly tested and proven design – trusted and used in over 80 countries around the world.
Front and rear Air Lockers available for most makes and models.
2WD applications available.
Easy installation and maintenance – no special tools, skills or additives required.
Air compressor also provides convenient, reliable source of air for inflating tyres, camping and leisure equipment.

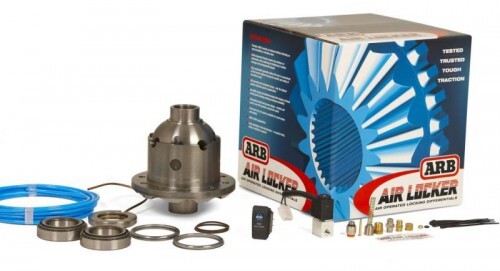

Parts Included:
Locking Differential
Carrier Bearings
Switch
Air Line
Solenoid

Fits These Vehicles:
84-01 Jeep Cherokee (XJ)
72-83 Jeep CJ-5
76-86 Jeep CJ-7
81-85 Jeep CJ-8
97-06 Jeep Wrangler (TJ)
87-95 Jeep Wrangler (YJ)
04-06 Jeep Wrangler Unlimited (TJ)

Please click on your specific Dana 30 differential application below to see the proper ARB locker for your setup.

ARB #RD100 - Dana 30 Air Locker - 27 spline axle - 3.73 & up ratio
ARB #RD101 - Dana 30 Air Locker - 27 spline axle - 3.54 & down ratio
ARB #RD104 - Dana Super 30 Air Locker - 30 spline axle - 3.73 & up ratio

Documentatie / Manuale utilizare

Specificații tehnice

Model Jeep / 4x4:

07- 18 Wrangler 2-Usi JK, 07-18 Wrangler Unlimited 4-Usi JKU, 97-06 Wrangler TJ, 04-06 Wrangler Unlimited LJ, 87-95 Wrangler YJ, 81-86 CJ-8 Scrambler, 76-86 CJ-7, 55-83 CJ-5 & CJ-6, 40-65 Willys MB, M-38, Ford GPW, CJ-2 & CJ-3, 84-01 Cherokee XJ, 93-98 Grand Cherokee ZJ, 99-04 Grand Cherokee WJ, 05-10 Grand Cherokee WK, 11-15 Grand Cherokee WK2, 06-10 Commander XK/XH, 02-07 Liberty KJ, 08-12 Liberty KK, 07-16 Compass / Patriot MK, ... alta Marca
