Kit Inaltare Full Long Arm 4-Link™ 4.5" / 5.5" (11.5 cm / 14 cm) - MetalCloak - fara Amortizoare, pt. 07-18 Jeep Wrangler & Wrangler Unlimited JK / JKU

Livrare

cu amortizoare Black Sport ... 5792$ la MC

Multimedia

Documentatie

Descriere produs

Kit Inaltare Full Long Arm 4-Link™ 4.5" / 5.5" (11.5 cm / 14 cm) - MetalCloak - fara Amortizoare pt. 07-18 Jeep Wrangler & Wrangler Unlimited JK / JKU

Kitul include arcurile noastre Leveling Suspension™ care oferă o tinuta de condus mai stabilă decât arcurile tradiționale Single Rate sau tendința mai recentă către arcurile progresive.

The Jeep JK Wrangler 4-Link Long Arm Suspension System integrates advanced technology with bolt-on long arm correction brackets, optimizing control arm geometry for superior performance at this lift height.

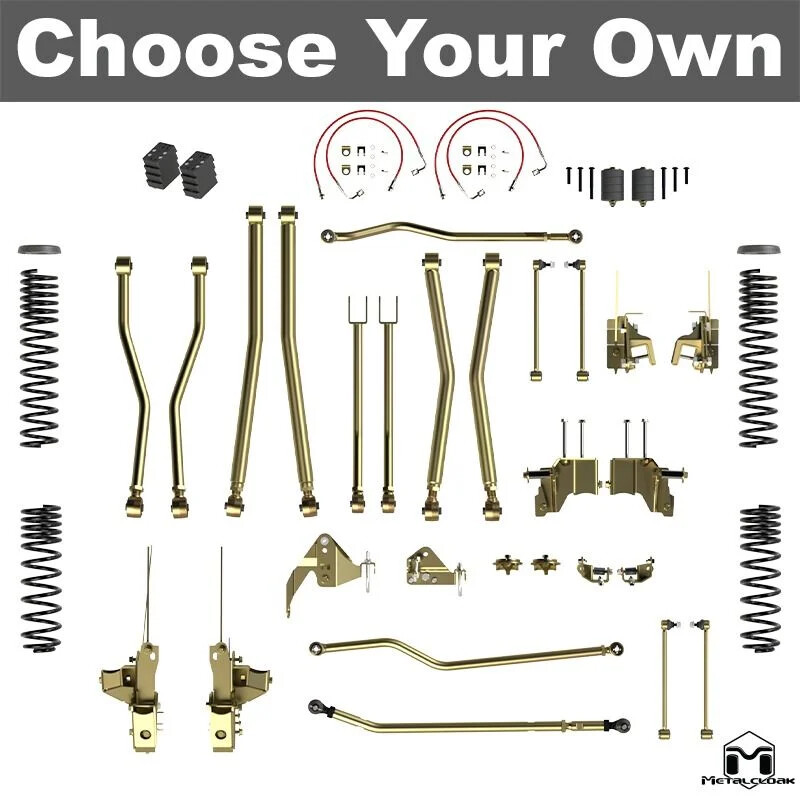

Features Include:

Front Weld on Upper Control Arm Brackets
Rear Bolt On Long Arm Brackets
High-Misalignment Vibration Dampening Duroflex™ Control Arms
Front Durotrak™ Bushing equipped track bar
Rear Durotrak™ Bushing equipped track bar

Rear Coil Alignment Retainers
True Dual Rate™ Coils
HD Drag Link
Track Bar and Stabilizer Relocation Bracket
Hi-Clearance Rear Track Bar Bracket
Shock mount relocation brackets
Adjustable bump stops
Standard Swaybar End Links
3 layer Stainless Steel extended Brake lines
Made in the USA

The Weld-On Front 4-Link Long Arm System delivers precise control over pinion angles in extreme conditions and is designed to complement the geometry of our rear bolt-on long arms. To accommodate the front long arms, factory brackets must be removed. These long arms are constructed from robust 2.0 DOM .25” (1/4”) wall steel, built to withstand trail abuse, and feature forged threaded ends for maximum durability.

The upper front arms, made from 1.25” DOM x 3/16” tubing, include forged ends for enhanced strength and are fully adjustable in length. Both front and rear control arms incorporate our patented Duroflex™ bushings, ensuring bind-free, maintenance-free articulation.

The rear long arms require the removal of factory rear control arm brackets but offer the best geometry MetalCloak has engineered. This optimized design enhances acceleration response, minimizes wheelbase changes, and delivers superior handling at high speeds.

The lower rear long arms, crafted from thick 2.0 DOM .25” (1/4”) wall steel, provide exceptional strength and durability with forged threaded ends. The upper rear control arms, made from 1.5” DOM .1875” (3/16”) tubing, are specially formed for maximum clearance during suspension travel.

For easy installation, the 100% bolt-on rear long-arm brackets are constructed from fully welded ¼” steel plate with angled surfaces to help glide over obstacles effortlessly.

This system combines cutting-edge technologies, including True Dual Rate™ Coils, revolutionary DuPont™ Kevlar® fiber-enhanced Duroflex™ Joints, and two-piece Durotrak™ bushing-equipped track bars, resulting in an unmatched off-road experience.

Designed for straightforward installation, this complete long-arm system includes everything needed: front and rear long arms, shocks, track bars, a steering stabilizer, brake lines, bump stops, and all required hardware.

With superior travel, articulation, clearance, and flex, this system delivers a smooth, predictable ride both on and off-road—all at a fraction of the modifications required by other long-arm kits, offering outstanding value.

Note: All 2012+ JK Wranglers will require either exhaust spacers or a driveshaft. Please see what’s this on front driveshaft clearance option.

Note: Front and Rear driveshafts required.

Note: We Recommend You have a suspension specialist align your Jeep once a MetalCloak suspension is installed.

Note: MetalCloak does not recommend powder coating your True Dual Rate Coils. See instructions for details.

Note: This item is being offered as a complete system that contains all the components shown. We cannot customize, replace or remove a component from the kit. If you need a custom order, all components are available individually and our sales team is happy to help you place your order.

Documentatie / Manuale utilizare

Specificații tehnice

Model Jeep / 4x4:

07- 18 Wrangler 2-Usi JK, 07-18 Wrangler Unlimited 4-Usi JKU

Modele KIT-uri Inaltare

KIT Suspensie Long Arm, KIT Suspensie

Diametru Anvelopa

42 inch

Dimensiune KIT Inaltare

14 cm / 5.50 inch, 11.5 cm / 4.50 inch
